SPECIFICATIONS

4.2KW MAX main load: 4200W

4.2KW Max Second Load(battery mode): 1400W

4.2KW Norminal Output: 18.2A

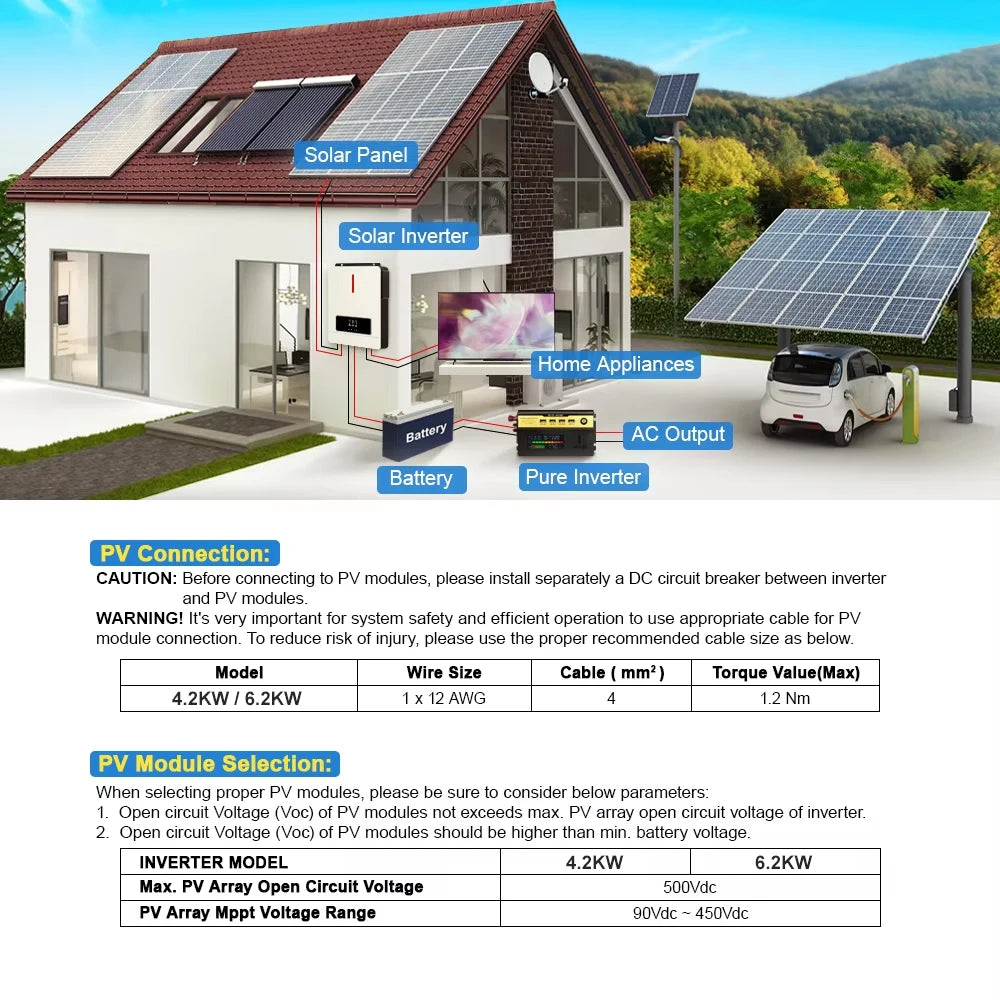

4.2kw Maximum PV Input Power: 6200W

6.2KW MAX main load: 6200w

6.2KW Max Second Load(battery mode): 2067W

6.2KW Norminal Output: 27.0A

6.2kw Maximum PV Input Power: 6500W

Brand Name: daxtromn

Certification: CE

Communication: WIFI Included

Hign-concerned Chemical: None

Is Smart Device: Yes

Max Conversion Efficiency(Solar to AC): 98%

Maximum AC Charging Current: 100A

Maximum Solar Charging Current: 120A,120A

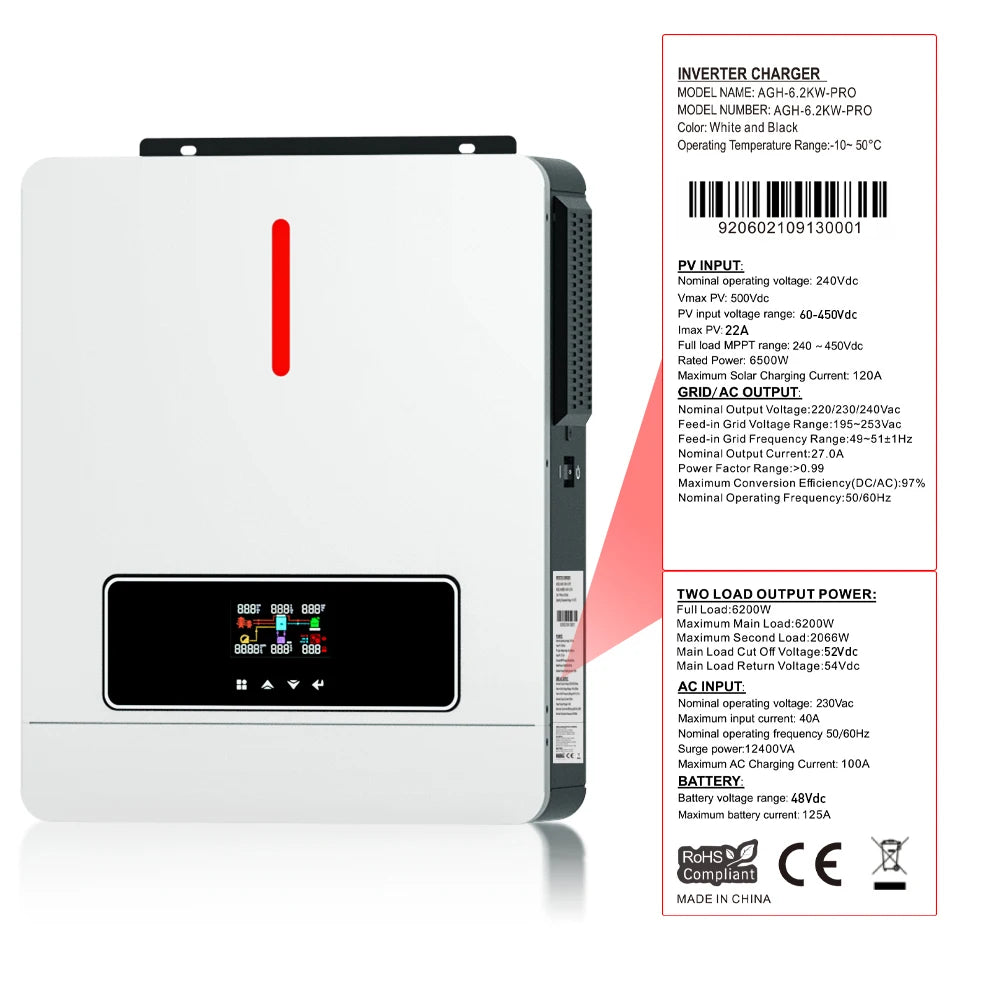

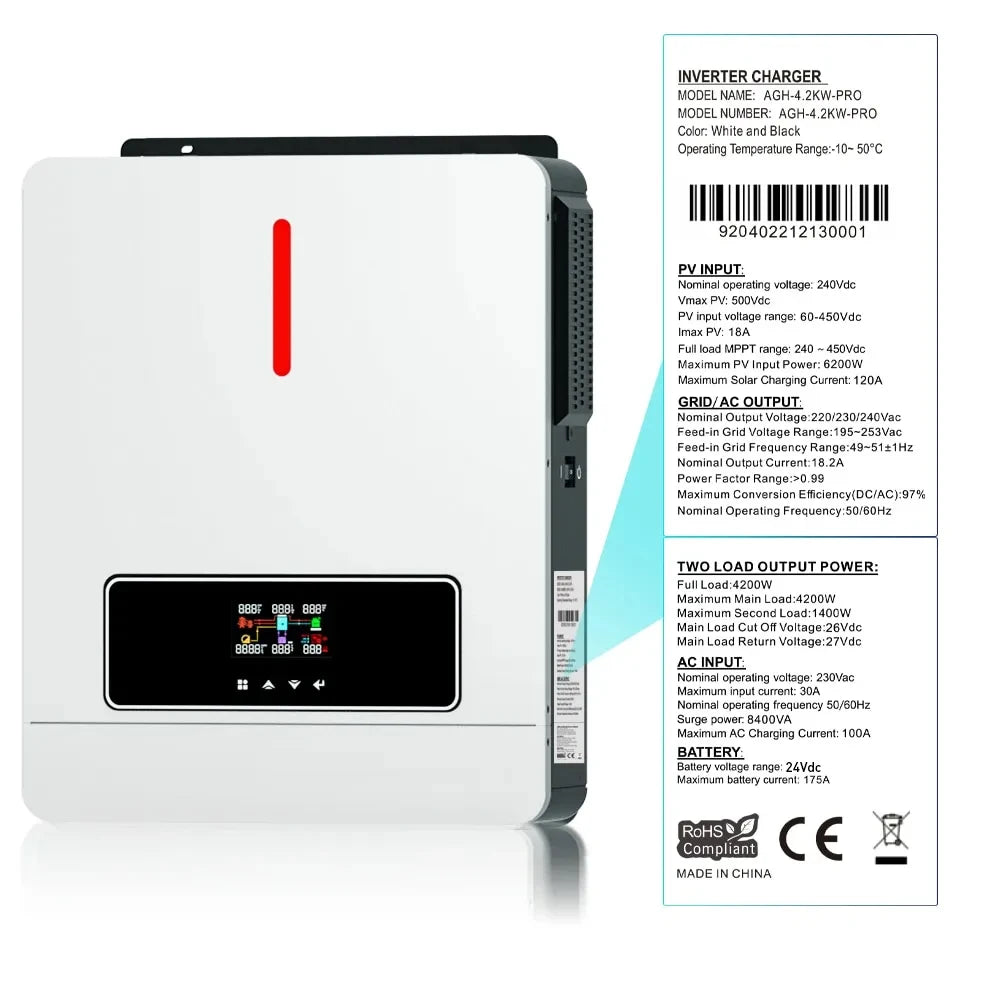

Model Number: AGH-3.6/4.2/6.2KW-PRO

Norminal Output Voltage: 220/230/240VAC

Number of MPPT/Max Input Current: 1/23A

Origin: Mainland China

Output Current: 20A

Output Frequency: 50/60HZ

Output Power: 1 - 200KW

Output Type: DUAL

PV MAX DC Voltage: 500VDC

PV Nominal DC Voltage: 360VDC

Phase: Single phase

Size: 53*39*21

Start-up Voltage: 120V

Weight: 10
